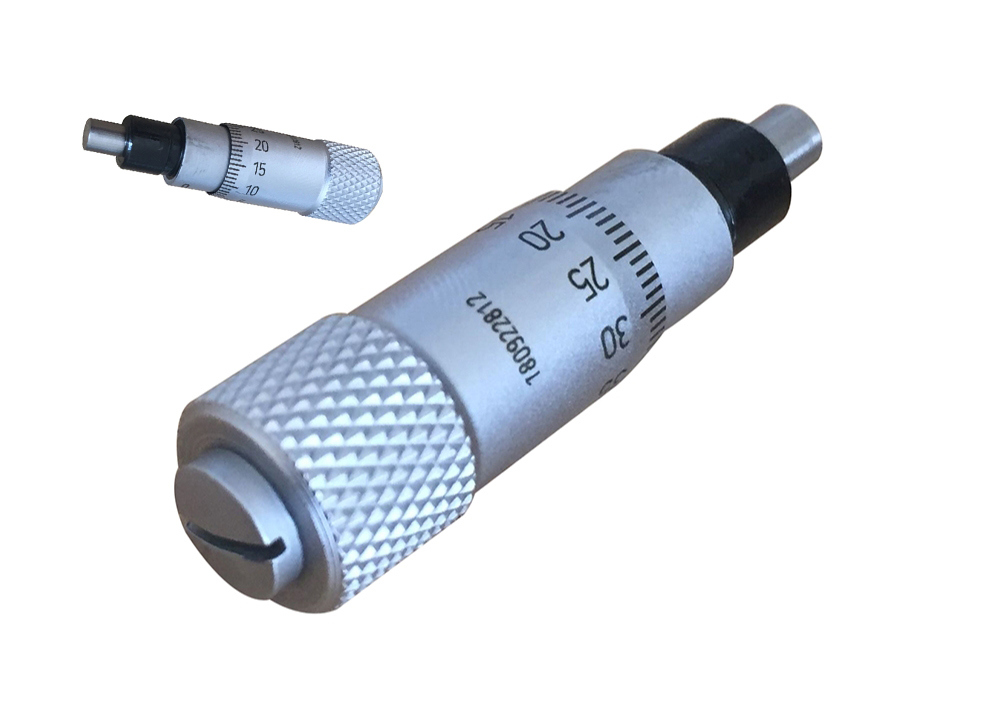

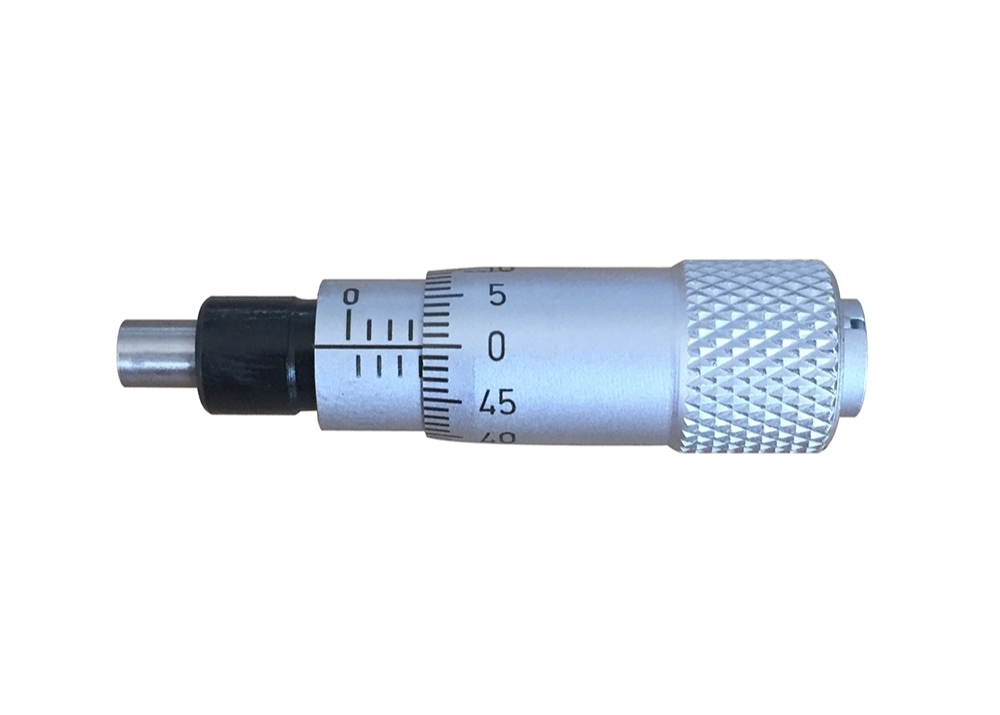

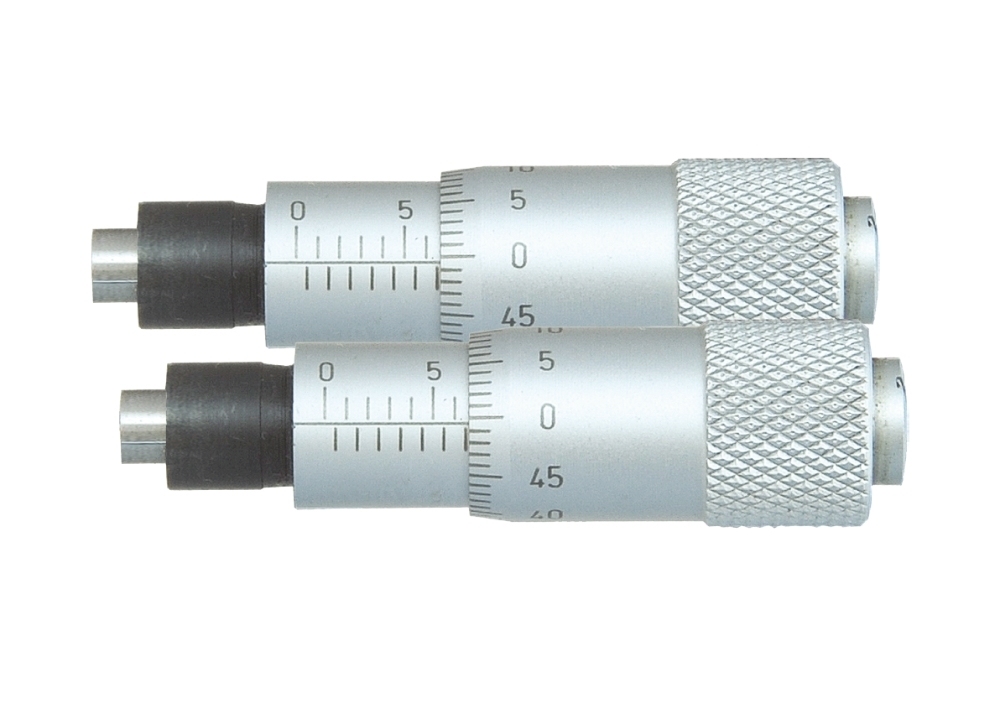

Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut
-
برجسته کردن
Clamp Nut Micrometer Head,0-0.25" Micrometer Head,0.001'' Graduation Micrometer Head
,0-0.25" Micrometer Head
,0.001'' Graduation Micrometer Head
-
گارانتییک سال
-
نام محصولمیکرومتر سر
-
اندازه گیریاینچ
-
رکود0-0.25 اینچ
-
تحصیلات0.001 اینچ
-
دقت± 0.0002 اینچ
-
اندازه گیری صورتصورت اندازه گیری صاف
-
ساقهبا مهره گیره
-
روش اندازه گیریدستی
-
بستهجعبه ABS
-
محل منبعشانشی، چین
-
نام تجاریKM
-
گواهیISO DIN GB RoHS
-
شماره مدلKM-3902-31
-
جزئیات بسته بندیجعبه ABS 17 * 10 * 5 سانتی متر / قطعه 0.30 کیلوگرم / قطعه
-
زمان تحویلظرف 15 روز
-
شرایط پرداختL/C ، D/A ، D/P ، T/T ، Western Union
-
قابلیت ارائه50000 قطعه در ماه
Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut
Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut
This precision micrometer head features a 0-0.25" measurement range with 0.001" graduation and ±0.0002" accuracy. The carbide-tipped spindle provides exceptional flatness, accuracy, and durability, while the ratchet thimble mechanism ensures consistent measurement force.
Key Features
- Available in both Metric and Inch models
- 9.4mm thimble diameter for comfortable operation
- 6.5mm spindle range with 3.5mm diameter
- Laser-etched scale for clear, precise readings
- Options for flat or spherical measuring faces
- Available with or without installation nut
- Carbide measuring face enhances precision and durability
- Includes protective case for safe storage
- Total length: 37mm (mic head) / 61mm (full assembly)
Technical Specifications
| Order No. | Measuring Range | Graduation | Accuracy | Measuring Face | Type |
|---|---|---|---|---|---|
| KM-3902-11 | 0-0.25" | 0.001" | ±0.0002" | Flat | Plain |
| KM-3902-21 | 0-0.25" | 0.001" | ±0.0002" | Spherical | |
| KM-3902-31 | 0-0.25" | 0.001" | ±0.0002" | Flat | With clamp nut |
| KM-3902-41 | 0-0.25" | 0.001" | ±0.0002" | Spherical |
Industrial Applications
- Optics: Precision control in DVD/CD production and inspection equipment
- Liquid Crystal Projection: Prismatic positioning and film loading processes
- Fiber Optic Technology: Ensuring accuracy in optical communication systems
- LCD Manufacturing: High-precision equipment adjustment and testing
- Semiconductor Industry: Production and inspection equipment applications
- Mechanical Engineering: Machine tool adjustments and precision gages
Operation Guidelines
- Perform precise calibration before initial use
- Select appropriate measurement range (0-5mm, 0-13mm, etc.)
- Maintain perpendicular alignment with measured object
- Ensure stable contact before taking readings
- Read measurements vertically to avoid angle deviations
Customization & Support
We offer customization services for special applications, including custom spindle tips and precision lead screws manufactured to your specifications.
Frequently Asked Questions
Manufacturer: Deko Corporation, specializing in precision measuring tools
Shipping Terms: FOB, CFR, CIF, EXW available
Payment Methods: T/T, L/C, D/A, D/P, PayPal, Western Union
Warranty: 1-year warranty with replacement service for defective parts
