Customized Digital Thickness Gauge With 0-25.4mm/0-1'' Measuring Range With 300mm Measuring Depth
-
برجسته کردن
0-25.4mm Digital Thickness Gauge,300mm Digital Thickness Gauge,Customized Digital Thickness Gauge
,300mm Digital Thickness Gauge
,Customized Digital Thickness Gauge
-
گارانتییک سال
-
اندازه گیریمتریک/اینچ
-
موادفولاد ضد زنگ
-
محدوده0-25.4mm/0-1"
-
قطعنامه0.01 میلی متر/0.0005 اینچ
-
عمق گلو300 میلی متر
-
برنامهضخامت کاغذ ، چرم ، لاستیک را اندازه گیری کنید
-
ویژگیبا دسته گرفتن مناسب
-
اندازه گیری صورتکاوشگر مسطح یا توپ
-

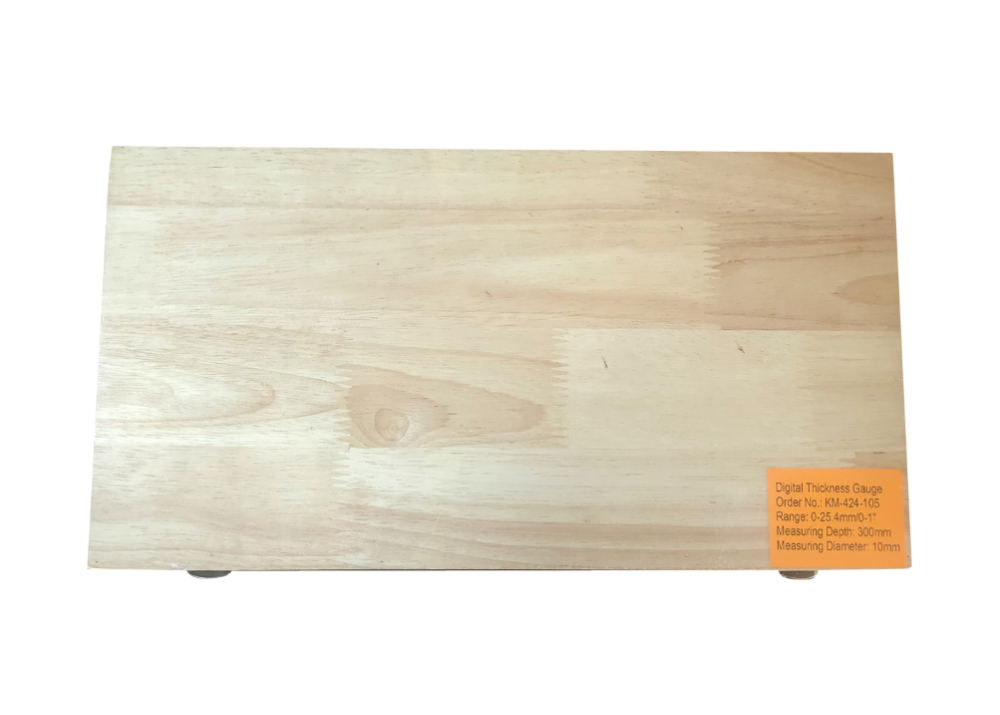

بستهکیف چوبی
-
محل منبعشانشی، چین
-
نام تجاریKM
-
گواهیISO DIN GB RoHS
-
شماره مدلKM-424-105
-
جزئیات بسته بندیجعبه چوبی 42*22*5 سانتی متر/قطعه 1.40 کیلوگرم/قطعه
-
زمان تحویلظرف 15 روز
-
شرایط پرداختT/T، L/C، D/P، D/A، Western Union، PayPal، MoneyGram
-
قابلیت ارائه50000 قطعه در ماه

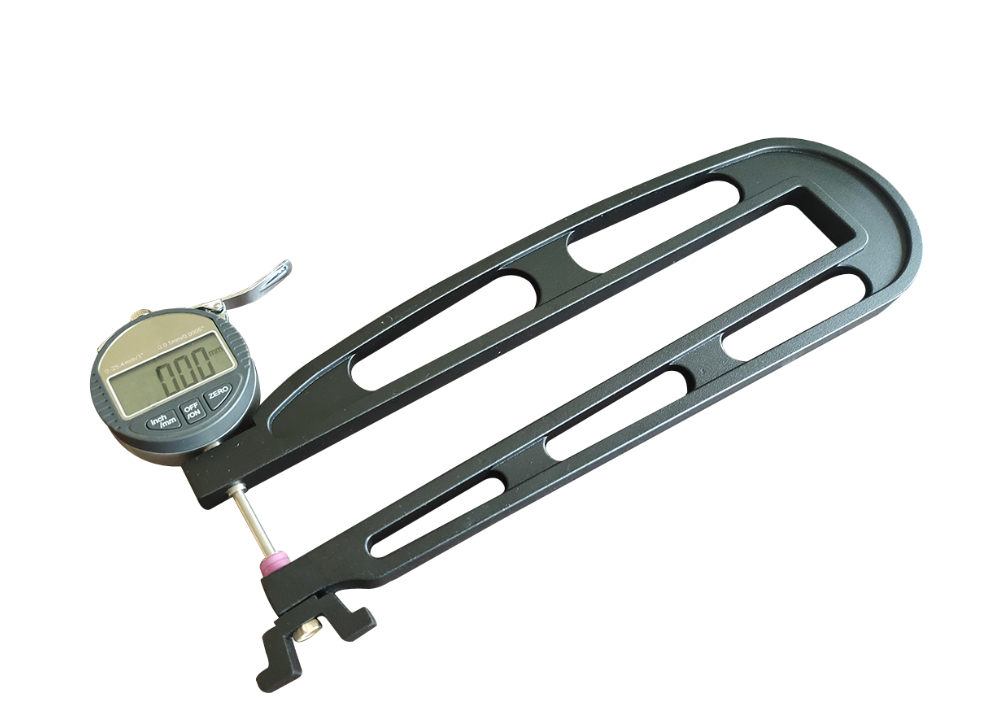

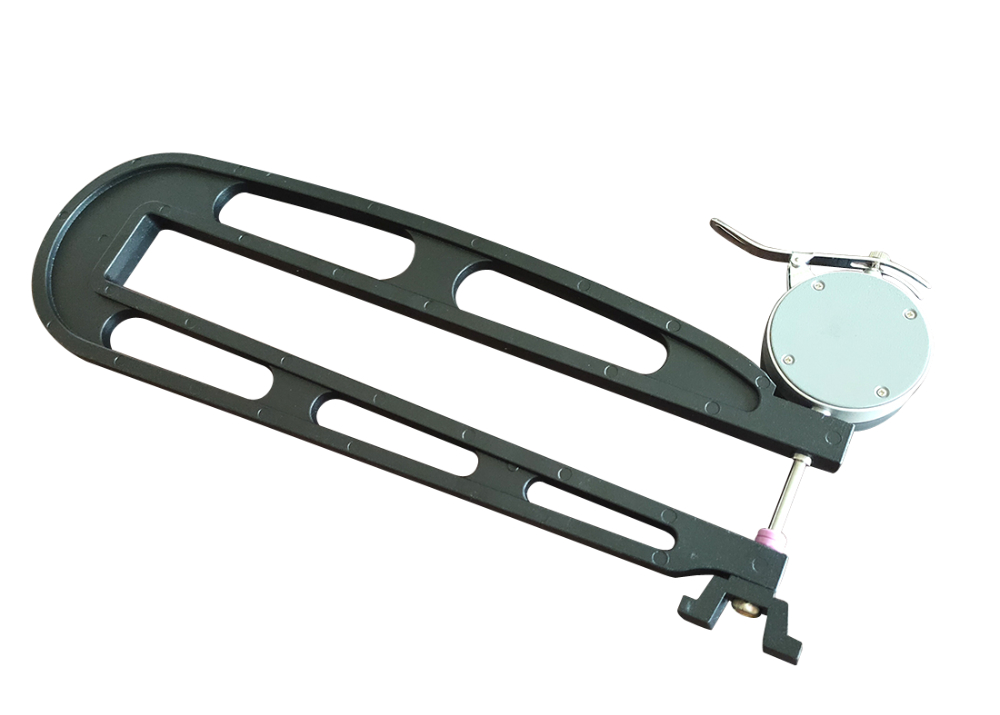

Customized Digital Thickness Gauge With 0-25.4mm/0-1'' Measuring Range With 300mm Measuring Depth
Customized Digital Thickness Gauge with 0-25.4mm/0-1'' Measuring Range with 300mm Measuring Depth
Our digital thickness gauge features a clear digital display for direct measurement readings, with automatic metric/inch conversion to eliminate manual reading errors and improve measurement efficiency.
Key Features
- Large LCD display for easy reading
- Zero-setting capability at any position
- Inch/Metric conversion function
- Power on/off control
- Ergonomic grip handle for quick measurements
- Lifting lever for dial indicator
- Multiple measuring face options for diverse applications
- Choice of steel or ceramic measuring faces
- Customizable measuring depth available

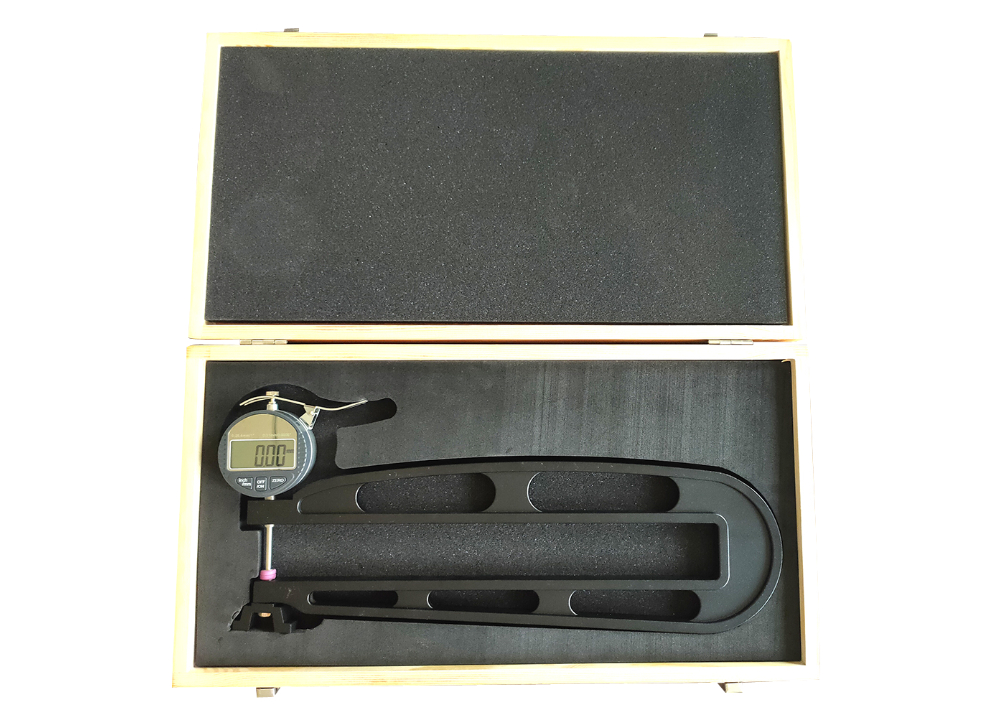

- Includes protective fitted case
Technical Specifications
| Order No. | Measuring Range | Resolution | Measuring Depth |
|---|---|---|---|
| KM-424-105 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 300mm |
Product Benefits
Our digital thickness gauges offer measuring ranges from 0-12.7mm/0-0.5'' up to 0-50mm/0-2'', with measuring depths from 26mm to 500mm to accommodate various applications. Custom measuring depths are available upon request.
The robust structural design ensures high measurement accuracy and stability across diverse environmental conditions. The low-power design enables extended operation without frequent battery replacement.
Usage Precautions
- Handle this precision instrument carefully to prevent impacts or drops that may affect accuracy
- Keep the gauge clean and protected from liquid penetration
- When not in use, keep the data output port covered and avoid touching terminals with metal objects
- Never apply voltage to any part of the thickness gauge or engrave on its surface
- Remove batteries during prolonged storage
Industry Applications
- Iron/Steel Industry: Measuring metal sheet thickness for ships, bridges, and oil tanks
- Chemical Industry: Measuring container and pipeline wall thickness
- Manufacturing: Measuring plastic, paper, leather, rubber, fabric, and glass materials
- Aerospace: Measuring aircraft and engine components
- Automotive: Measuring vehicle parts including body panels and brake discs
Frequently Asked Questions
-
Who are we?Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China.
-
Product range?We offer dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, and levels.
-
Trade terms?We support FOB, CFR, CIF, and EXW arrangements.
-
Payment methods?We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
-
Customization?OEM services are available.
-
After-sales service?All products come with a one-year warranty. Defective parts will be replaced promptly.
