Internal Groove Micrometer with Pistol Grip 3-Point Contact for Bore Grooves Measurement
-
برجسته کردن
Pistol Grip Internal Groove Micrometer,Bore Grooves Internal Groove Micrometer,3-Point Internal Groove Micrometer
,Bore Grooves Internal Groove Micrometer
,3-Point Internal Groove Micrometer
-
ضمانتیک سال
-
اندازه گیریمتریک
-
نوع محصولمیکرومتر شیار داخلی
-
دامنه اندازه گیری20-25 میلی متر
-
نوع anvilتماس سه امتیازی
-
نوع چنگکدسته تپانچه
-
کاربرد اولیهشیار داخلی ، سوراخ و اندازه گیری شیار O-Ring
-
ماده قابفولاد ضد زنگ با قدرت بالا
-
بسته بندی کردنجعبه آلومینیوم
-
محل منبعشانشی ، چین
-
نام تجاریKM
-
گواهیISO DIN GB RoHS
-
شماره مدلKM-2306-25
-
جزئیات بسته بندیجعبه آلومینیوم 37*22*16cm/قطعه 3.50 کیلوگرم در قطعه
-
زمان تحویلظرف 15 روز
-
شرایط پرداختT/T ، L/C ، D/P ، D/A ، Western Union ، PayPal ، MoneyGram
-
قابلیت ارائه50000 قطعه در ماه

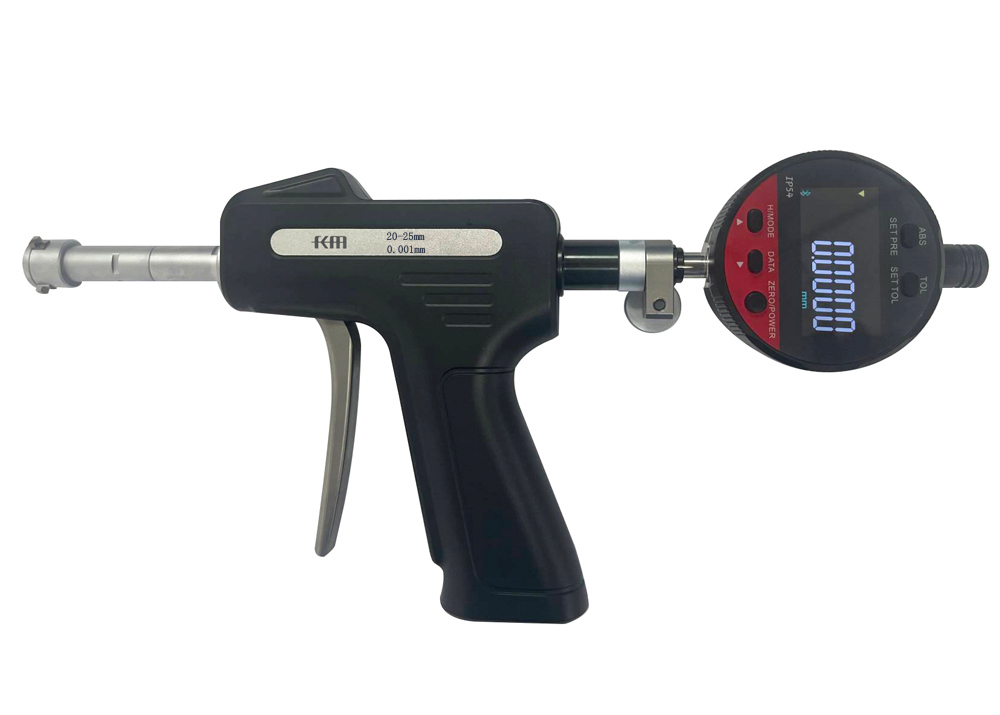

Internal Groove Micrometer with Pistol Grip 3-Point Contact for Bore Grooves Measurement
Internal Groove Micrometer with Pistol Grip 3-Point Contact for Bore Grooves Measurement
Product Overview
Precision internal groove micrometer featuring a pistol grip design and 3-point contact system for accurate bore groove measurements. Ideal for manufacturing and quality control applications.
Key Features
- Self-centering 3-point contact system ensures accurate bore measurements.
- Stepped measuring head facilitates easy groove diameter measurement.
- Rapid mobile measurement method enables efficient repeated measurements.
- Includes setting rings for measurements within 100mm range.
- Supplied in a protective fitted case for safe storage and transport.
Technical Specifications
| Order No. | Measuring Range | Measuring Width | Measuring Depth | Accuracy | Setting |
|---|---|---|---|---|---|
| KM-2306-8 | 6-8mm | 1.5mm | 1.5mm | 0.006mm | Φ6mm |
| KM-2306-10 | 8-10mm | 1.5mm | 1.5mm | 0.006mm | Φ8mm |
| KM-2306-12 | 10-12mm | 1.5mm | 1.5mm | 0.006mm | Φ10mm |
| KM-2306-16 | 12-16mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-20 | 16-20mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-25 | 20-25mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-30 | 25-30mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-40 | 30-40mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-50 | 40-50mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-63 | 50-63mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-75 | 62-75mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-88 | 75-88mm | 2mm | 3mm | 0.007mm | Φ87mm |
| KM-2306-100 | 87-100mm | 2mm | 3mm | 0.007mm | Φ87mm |
Set Configurations
| Order No. | Measuring Range | Setting Ring |
|---|---|---|
| KM-2306S-12 | 6-8mm, 8-10mm, 10-12mm | Φ6mm Φ8mm Φ10mm |
| KM-2306S-20 | 12-16mm, 16-20mm | Φ16mm |
| KM-2306S-50 | 20-25mm, 25-30mm, 30-40mm, 40-50mm | Φ25mm Φ40mm |
| KM-2306S-100 | 50-63mm, 62-75mm, 75-88mm, 87-100mm | Φ62mm Φ87mm |
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. If you receive any defective items, we will promptly ship replacement parts or products.
Our strict calibration and inspection processes ensure high product quality.
